Figure 97:

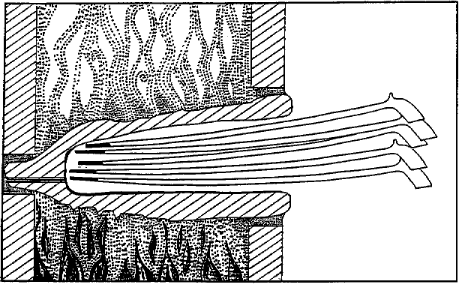

a - Suggested sectional reconstruction showing tipping muffle bridging the fire path with pipes placed for glaze melt. The dark line on inner and lower surface indicates glaze track from contact and drips.

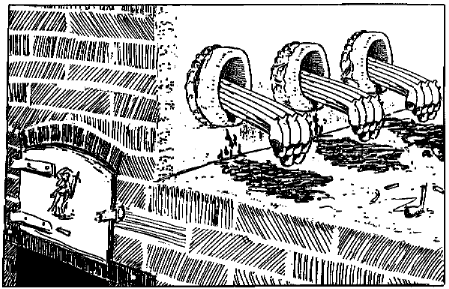

b - Sketch reconstruction showing how a bank of tipping muffles might have been set above a flue similar to those excavated at Boston.
