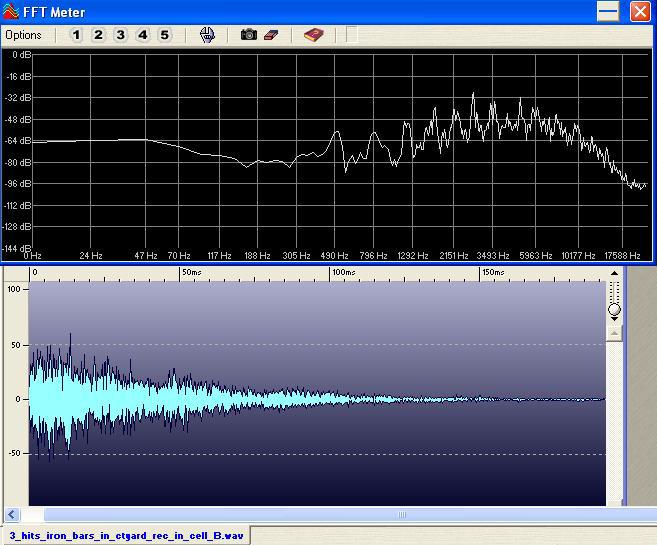

Figure 17: Cell B. Iron bars analysis. Iron bars in courtyard recorded in cell B. The snapshot of the fft analysis shows the spike in amplitude at frequencies between 1440 Hz and 2640 Hz, the wave response shows that direct sound from the courtyard enters cell B and lasts for 150 msecs..
