Internet Archaeology. Smith et al. Fig 2

Figure 2a
Fig 2a

Figure 2b
Fig 2b

Figure 2c
Fig 2c

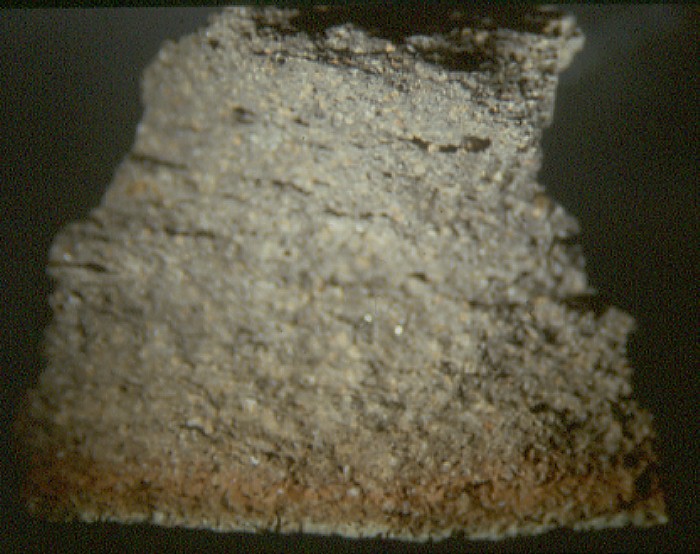

Figure 2: Specimen 33: Group 1.1.1, high quartz together with a very high limestone content and a large difference in their proportions. a) sherd section field width 17mm, b) thin section XP field width c. 10.7mm, c) thin section XP field width c. 2.7mm.
