The Portable Antiquities Scheme and the potential of non-metallic finds: A Viking Comb from Shotley, Suffolk

Steven P. Ashby, Lewis Tomlinson, Samantha Presslee, Jessica Hendy, Alex Bliss, Faye Minter and Dan Brock

Cite this as: Ashby, S.P., Tomlinson, L., Presslee, S., Hendy, J., Bliss, A., Minter, F. and Brock, D. 2023 The Portable Antiquities Scheme and the potential of non-metallic finds: A Viking Comb from Shotley, Suffolk, Internet Archaeology 61. https://doi.org/10.11141/ia.61.11

Summary

This article presents a case study in maximising the potential of publicly collected archaeological finds, through collaboration between finder, recorder, curating institution and the research community. It focuses on an object reported to the Portable Antiquities Scheme, of a type not usually well represented among metal-detected finds: an early-medieval antler hair comb. Typological and biomolecular analysis of the comb - found on the shores of the river Orwell, Suffolk - shows that it was manufactured in Scandinavia in the mid-10th century, before being brought to south-east England. This is the first comb found in England to be identified as Scandinavian via biomolecular means, and represents an important, scientifically-verified demonstration of contact between the regions in the period following initial settlement.

Photo of the Shotley comb
The Shotley comb. Image credit: Suffolk County Council, CC-BY-SA
  • Google Scholar
  • Keywords: metal-detecting, portable antiquities, viking, combs, antler, early-medieval, RTI, 3D-scanning, digital imaging
  • Accepted: 22 November 2023. Published: 7 December 2023
  • Supporting ZooMS data available at: https://doi.org/10.5281/zenodo.8321862
  • Funding: The York Centre of Excellence in Mass Spectrometry was created thanks to a major capital investment through Science City York, supported by Yorkshire Forward with funds from the Northern Way Initiative, and subsequent support from EPSRC (EP/K039660/1; EP/M028127/1). The publication of the article was supported by the Department of Archaeology, University of York's Open Access Fund.
  • PDF download (main article text only)

Corresponding author: Steven P. Ashby ORCID logo
steve.ashby@york.ac.uk
Dept. Archaeology, University of York

Lewis Tomlinson
Dept. Archaeology, University of York

Samantha PressleeORCID logo
Dept. Archaeology/BioArCH, University of York

Jessica HendyORCID logo
Dept. Archaeology/BioArCH, University of York

Alex Bliss
Cotswold Archaeology

Faye Minter
Suffolk County Council Archaeological Service

Dan Brock
Dept. Archaeology, University of York

Full text

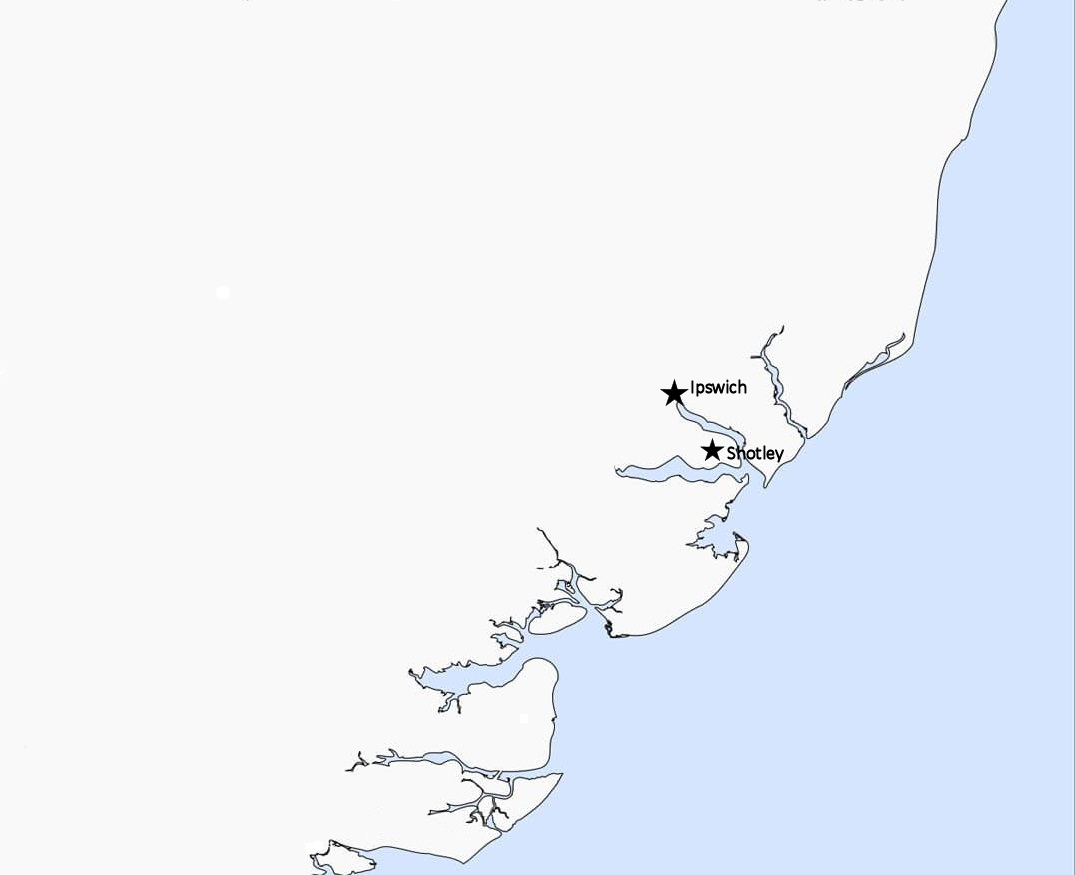

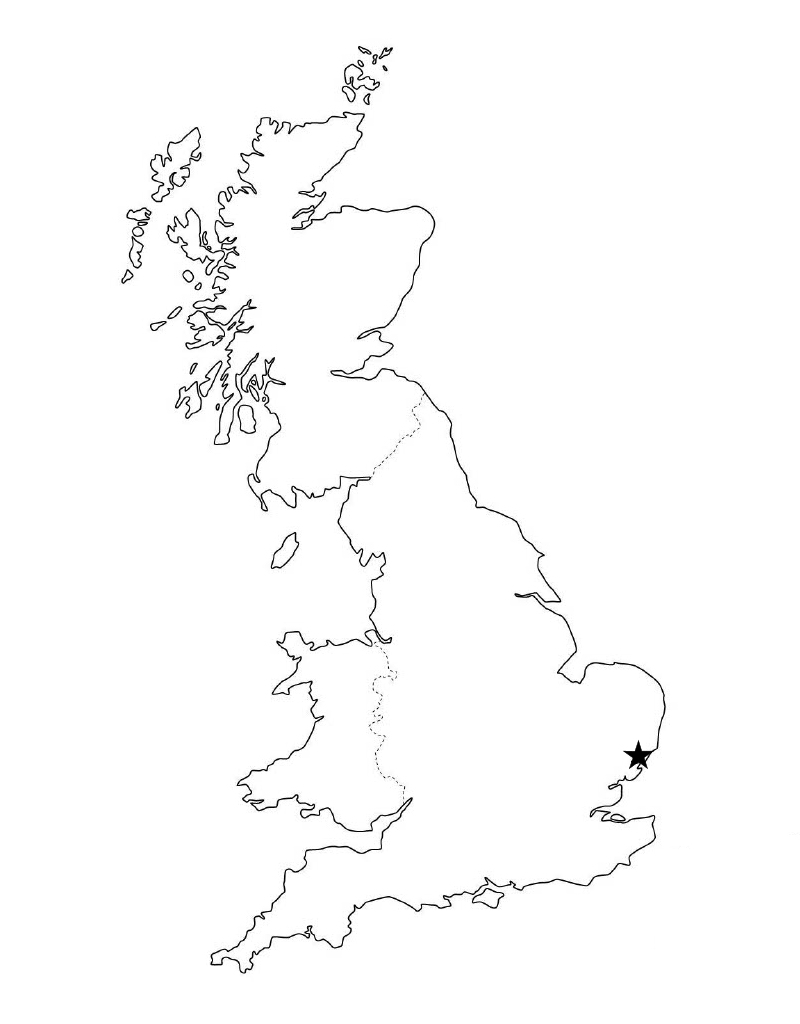

Figure 1a / Figure 1b: Map showing the approximate location of the comb's findspot. Image credit: Aleks McClain

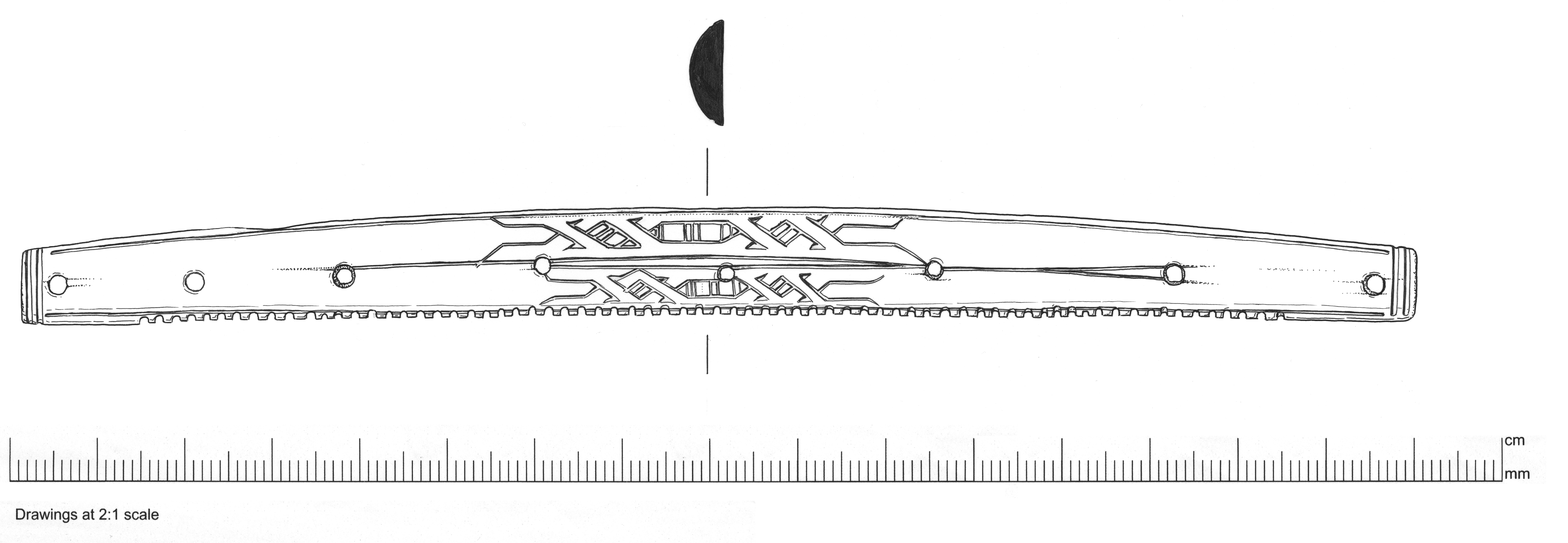

Figure 2a / Figure 2b: a) Image of the comb. Image credit: Suffolk County Council, CC-BY-SA. b) Drawing of the Shotley comb. Image credit: Donna Wreathall

Figure 3: The key elements of a single-sided composite comb. Image credit: Pat Walsh

Figure 4: RTI Image of the Shotley comb. Image credit: Dan Brock

Figure 5: 3D Model of the Shotley comb. Image credit: Dan Brock

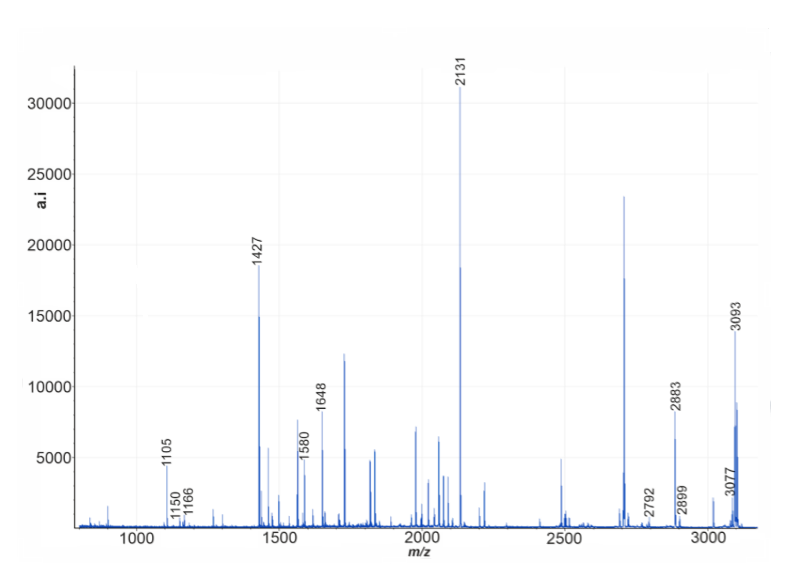

Figure 6: MALDI-ToF spectrum of the Shotley comb. Image credit: Sam Presslee

Abrams, L. 2012 'Diaspora and identity in the Viking Age', Early Medieval Europe 20, 17–38. https://doi.org/10.1111/j.1468-0254.2011.00333.x

Ambrosiani, K. 1981 Viking Age Combs, Comb Making and Comb Makers in the Light of Finds from Birka and Ribe. Stockholm Studies in Archaeology 2, Stockholm: Almqvist and Wiksell.

Andreeff, A. and R. Potter 2014 'Imaging picture stones: Comparative studies of rendering techniques' in H. Alexandersson, A. Andreeff and A. Bünz (eds) Med hjärta och hjärna: En vänbok till professor Elisabeth Arwill-Nordbladh, Göteborg: Institutionen för historiska studier, Göteborgs universitet. 669-89.

Ashby, S.P., A.N. Coutu and S.M. Sindbæk 2015 'Urban Networks and Arctic Outlands: Craft Specialists and Reindeer Antler in Viking Towns', European Journal of Archaeology 18, 679–704. https://doi.org/10.1179/1461957115Y.0000000003

Buckley, M. 2018 'Zooarchaeology by Mass Spectrometry (ZooMS) Collagen Fingerprinting for the Species Identification of Archaeological Bone Fragments' in Christina M. Giovas and Michelle J. LeFebvre (eds) Zooarchaeology in Practice: Case Studies in Methodology and Interpretation in Archaeofaunal Analysis, New York: Springer. 227-47. https://doi.org/10.1007/978-3-319-64763-0_12

Buckley, M. and Collins, M.J. 2011 'Collagen Survival and Its Use for Species Identification in Holocene-Lower Pleistocene Bone Fragments from British Archaeological and Paleontological Sites', Antiqua 1(1). https://doi.org/10.4081/antiqua.2011.e1

Callmer, J. 2020 'Combmaking in southern and eastern Scandinavia and the Baltic region (c. AD 700--900)' in S.P. Ashby and S.M. Sindbæk Crafts and Social Networks in Viking Towns, Oxford: Oxbow. 133–64. https://doi.org/10.2307/j.ctv138ws19.9

Giles, J.A. 1912 The Anglo-Saxon Chronicle, London: G. Bell and Son.

Hendy, J. 2021 'Ancient protein analysis in archaeology', Science Advances 7, American Association for the Advancement of Science: eabb9314. https://doi.org/10.1126/sciadv.abb9314

Jesch, J. 2015 The Viking Diaspora, London: Routledge. https://doi.org/10.4324/9781315708331

Jones, J. and N. Smith 2017 'The Strange Case of Dame Mary May's tomb: The performative value of Reflectance Transformation Imaging and its use in deciphering the visual and biographical evidence of a late 17th-century portrait effigy', Internet Archaeology 44. https://doi.org/10.11141/ia.44.9

Kershaw, J. 2013 Viking Identities. Scandinavian Jewellery in England, Oxford: Oxford University Press. https://doi.org/10.1093/acprof:oso/9780199639526.001.0001

Kershaw, J.F. 2009 'Culture and gender in the Danelaw: Scandinavian and Anglo-Scandinavian brooches', Viking and Medieval Scandinavia 5, 295–325. https://doi.org/10.1484/J.VMS.1.100682

Lewis, M. 2016 'A Detectorist's Utopia? Archaeology and Metal-Detecting in England and Wales', Open Archaeology 2, 127-39. https://doi.org/10.1515/opar-2016-0009

Luik, H., Peets, J., Ljungkvist, J. et al. 2020 'Antler combs from the Salme ship burials: find context, origin, dating and manufacture', Estonian Journal of Archaeology 24, 3–44. https://doi.org/10.3176/arch.2020.1.01

MacDonald, L.W. 2011 'Visualising an Egyptian Artefact in 3D: Comparing RTI with Laser Scanning' In Electronic Visualisation and the Arts (EVA 2011), 6-8 July 2011. https://doi.org/10.14236/ewic/eva2011.28

Malzbender, T., D. Gelb and H. Wolters 2001 'Polynomial texture maps' in Proceedings of the 28th annual conference on Computer graphics and interactive techniques: 519–28 (SIGGRAPH '01), New York, NY, USA: Association for Computing Machinery. 519–528. https://dl.acm.org/doi/10.1145/383259.383320

Margaryan, A., Lawson, D.J., Sikora, M. et al. 2020 'Population genomics of the Viking world', Nature 585, 390–96. https://doi.org/10.1038/s41586-020-2688-8

Muñoz-Rodriguez, M., S. Presslee, K. McGrath, N. Hausmann, V. Hilberg, S. Kalmring, L. Holmquist, J. Hendy and S.P. Ashby 2023 'In the footsteps of Ohthere: biomolecular analysis of early Viking Age hair combs from Hedeby (Haithabu)', Antiquity 97, 1233–48. https://doi.org/10.15184/aqy.2023.118

Presslee, S., Penkman, K., Fischer, R., Richards-Slidel, E., Southon, J., Hospitaleche, C.A., Collins, M., and MacPhee, R. 2020 'Assessment of Different Screening Methods for Selecting Palaeontological Bone Samples for Peptide Sequencing', Journal of Proteomics 230, 103986. https://doi.org/10.1016/j.jprot.2020.103986

Smith, N., G. Beale, J. Richards and N. Scholma-Mason 2018 'Maeshowe: The application of RTI to Norse runes (data paper)', Internet Archaeology 47. https://doi.org/10.11141/ia.47.8

Strohalm, M., Kavan, D., Novák, P., Volný, M. and Havlícek, V. 2010 'mMass 3: A Cross-Platform Software Environment for Precise Analysis of Mass Spectrometric Data', Analytical Chemistry 82(11), 4648–4651. https://doi.org/10.1021/ac100818g

Tomlinson, L. 2020 How to Avoid Getting your Sheep/Goat: Testing the Bacollite Tool for Automated Classification of ZooMS Spectra for Viking Age Research, MSc Dissertation: Department of Archaeology, University of York.

von Holstein, I.C., S.P. Ashby, N.L. van Doorn, S.M. Sachs, M. Buckley, M. Meirai, I. Barnes, A. Brundle and M.J. Collins 2014 'Searching for Scandinavians in pre-Viking Scotland: molecular fingerprinting of Early Medieval combs', Journal of Archaeological Science 41, 1–6. https://doi.org/10.1016/j.jas.2013.07.026

Watt, W.G.T. 1888 'Notice of the discovery of a stone cist, with an Iron Age interment, at Skaill Bay', Proceedings of the Society of Antiquaries of Scotland 22, 283–85. https://doi.org/10.9750/PSAS.022.283.285

Welker, F., Hajdinjak, M., Talamo, S., Jaouen, K., Dannemann, M., David, F., Julien, M., Meyer, M., Kelso, J., Barnes, I., Brace, S., Kamminga, P., Fischer, R., Kessler, B.M., Stewart, J.R., Pääbo, S., Collins, M.J., and Hublin, J.-J. 2016 'Palaeoproteomic Evidence Identifies Archaic Hominins Associated with the Châtelperronian at the Grotte Du Renne', Proceedings of the National Academy of Sciences of the United States of America 113(40), 11162-7. https://doi.org/10.1073/pnas.1605834113

Wyatt-Spratt, S. 2022 'After the revolution: A review of 3D modelling as a tool for stone artefact analysis', Journal of Computer Applications in Archaeology 5, 215–237. https://doi.org/10.5334/jcaa.103
