Cite this as: Gaffney, C., Croucher, K., Bates, C.R., Booker, O., Dunn, R., Evans, A., Ichumbaki, E.B., Moore, J., Ogden, J., Ritchings, J., Simpson, S., Sparrow, T., Walker, A. and Wilson, A.S. 2025 Digital Twins at the City and Town Scale: Europe and Beyond, Internet Archaeology 70. https://doi.org/10.11141/ia.70.5
The last ten years have seen great strides in digital archaeological and heritage outputs, particularly with the use of three-dimensional (3D) digital documentation becoming increasingly commonplace. Methods that widen participation and increase access have led to valuable community-scale documentation, from artefacts to landscapes. As part of this workflow, the Visualising Heritage team at the University of Bradford, UK, and international collaborators, have been at the forefront of applying digital twin technologies to townscape heritage for many years. Our approach includes the use of mobile mapping technologies that were initially developed to mitigate heritage destruction and loss that had occurred through conflict and mass disasters. Our main focus has now shifted to anticipating heritage loss and ensuring that an accurate record exists for heritage assets at risk, and engaging with planners to anticipate the needs of the cultural heritage sector. In this paper we present our scalable approach, from individual buildings that have been assessed as heritage at risk, to streetscapes and broader cityscapes.
In partnership with City of Bradford Metropolitan District Council, we have developed 'Virtual Bradford', one of the first open-data level-of-detail 3 (LoD3) city-scale digital twins. Virtual Bradford provides an accurate digital representation of the city centre, encompassing several conservation areas and multiple listed buildings, including landmark buildings such as City Hall, St Georges Hall and the Wool Exchange, each designed by architects Lockwood & Mawson, who also designed the nearby United Nations Educational, Scientific and Cultural Organization (UNESCO) World Heritage Site of Saltaire, which has been the subject of additional capture and outputs. This work has produced a seamless data-rich model embracing heritage at its core while addressing the demands of the 21st century.
In response to the UK Research and Innovation (UKRI) Global Challenges Research Fund (GCRF) initiative advocating cutting-edge research to address challenges faced by developing countries, we have used the latest technology to replicate and extend our approach to digital twin development for the 19th-century colonial city of Bagamoyo in Tanzania. Each project collectively represents place-based research that helps to address needs ranging from data-driven decision-making in support of local authority needs (including, as a core deliverable, forming part of the digital strategy for the City of Bradford Metropolitan District Council), to education and interpretation, tourism and the creative economy. Fundamentally these scalar approaches help to bring planning, regeneration and related decision-making to the public and other stakeholders, leading to increased topophilia that includes heritage at its heart.
Corresponding author: Andrew S. Wilson
A.S.Wilson2@bradford.ac.uk
Visualising Heritage, University of Bradford
Chris Gaffney
C.Gaffney@bradford.ac.uk
Visualising Heritage, University of Bradford
Karina Croucher
Visualising Heritage, University of Bradford
C. Richard Bates
School of Earth and Environmental Sciences, University of St Andrews
Olivia Booker
School of Earth and Environmental Sciences, University of St Andrews
Richard Dunn
Visualising Heritage, University of Bradford
Adrian Evans
Visualising Heritage, University of Bradford
Elgidius B. Ichumbaki
Department of Archaeology & Heritage Studies, University of Dar es Salaam
Joe Moore
Visualising Heritage, University of Bradford
Joe Ogden
Visualising Heritage, University of Bradford
Joe Ritchings
City of Bradford Metropolitan District Council
Syd Simpson
City of Bradford Metropolitan District Council
Tom Sparrow
Visualising Heritage, University of Bradford
Adrian Walker
City of Bradford Metropolitan District Council

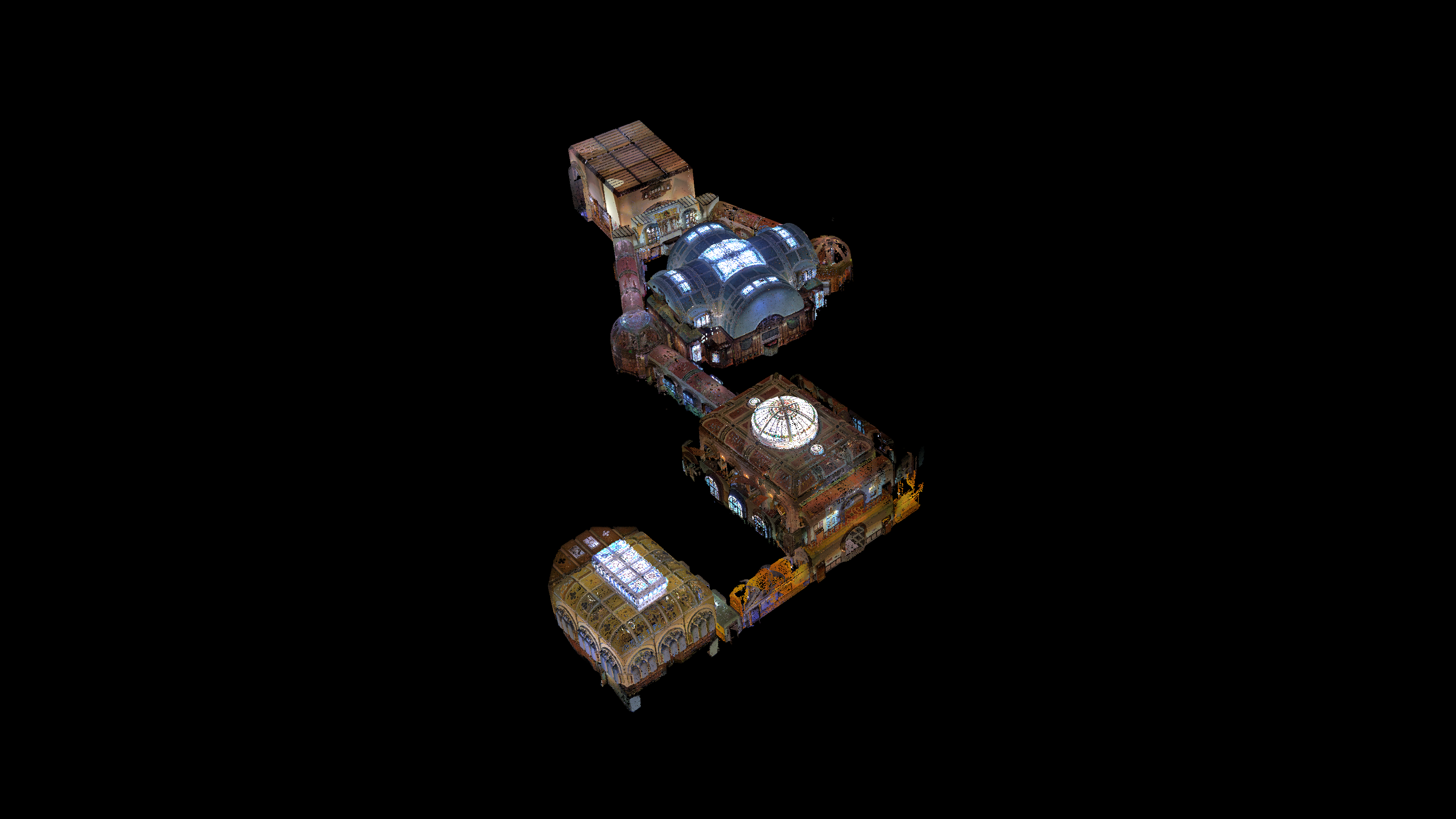

Figure 1: The City Hall Heritage Trail showcasing (A) the interior of the City Hall (https://sketchfab.com/3d-models/city-hall-laser-scan-decimated-to-5cm-spacing-566a85376c5a4029b8a286b99e2481bc) and (B) the ornate overmantle within the banqueting suite, with associated contextual meaning carved by C.R. Millar of Millar and Hobbs Stone Carvers, below the City's crest and motto 'Labor Omnia Vincit' ('Labour Conquers All Things'), a beautiful classically styled frieze scene that depicts the virtues and values of Bradford (https://visualisingheritage.org/bradford-heritage-and-sculpture-trails/).

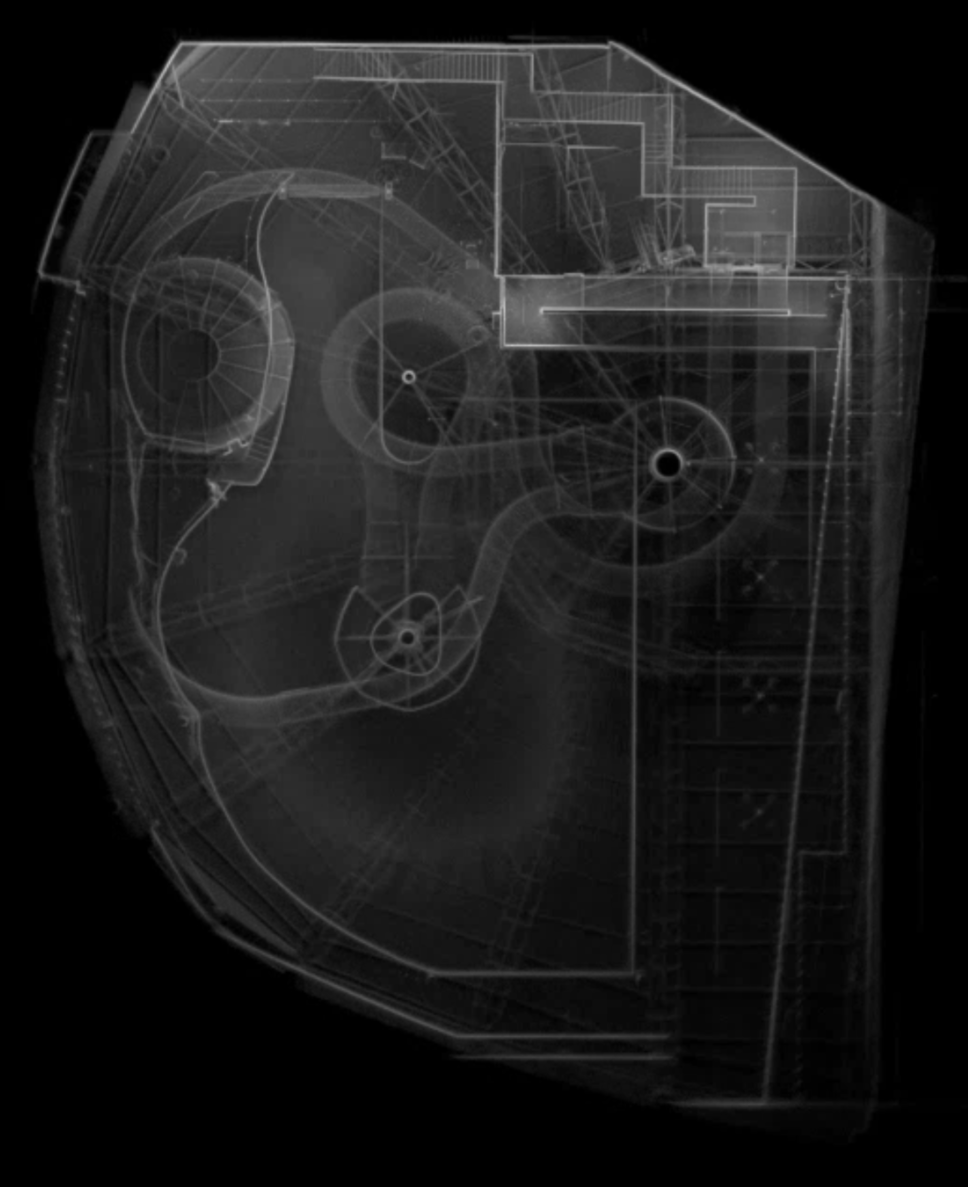

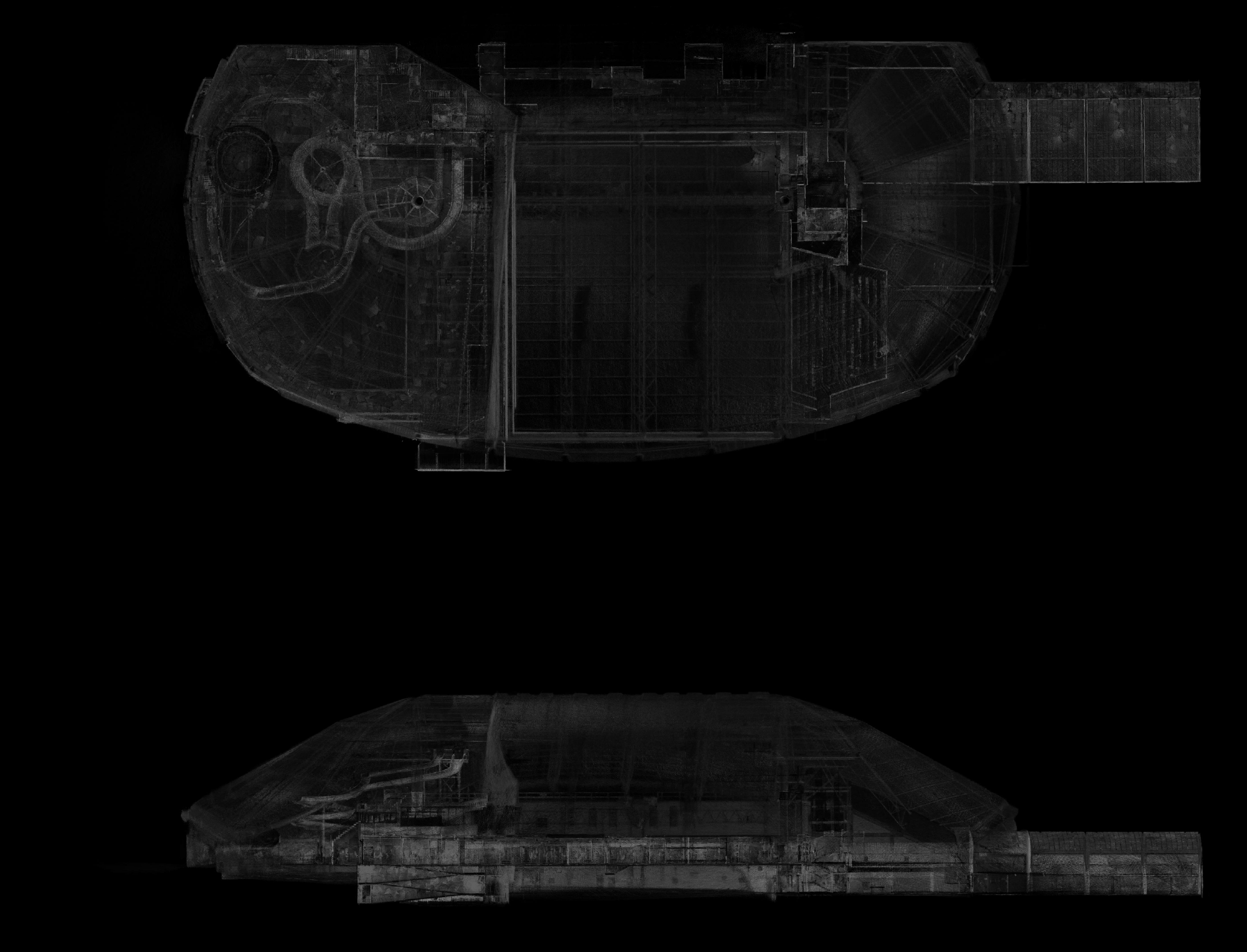

Figure 2: The Richard Dunn sports centre, showing (A) details of the water slides from above, and (B) a plan and side view of the whole iconic listed building.

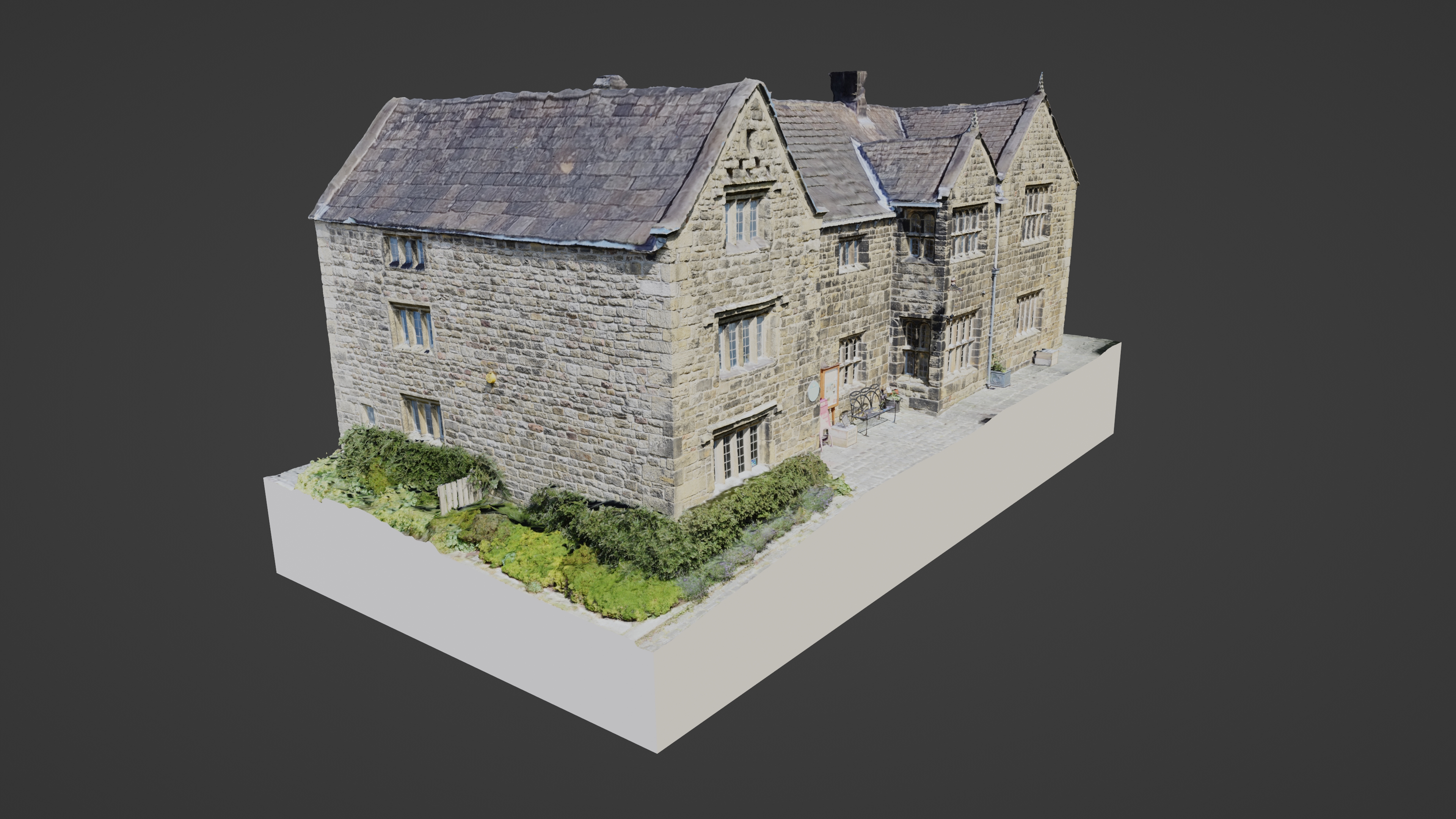

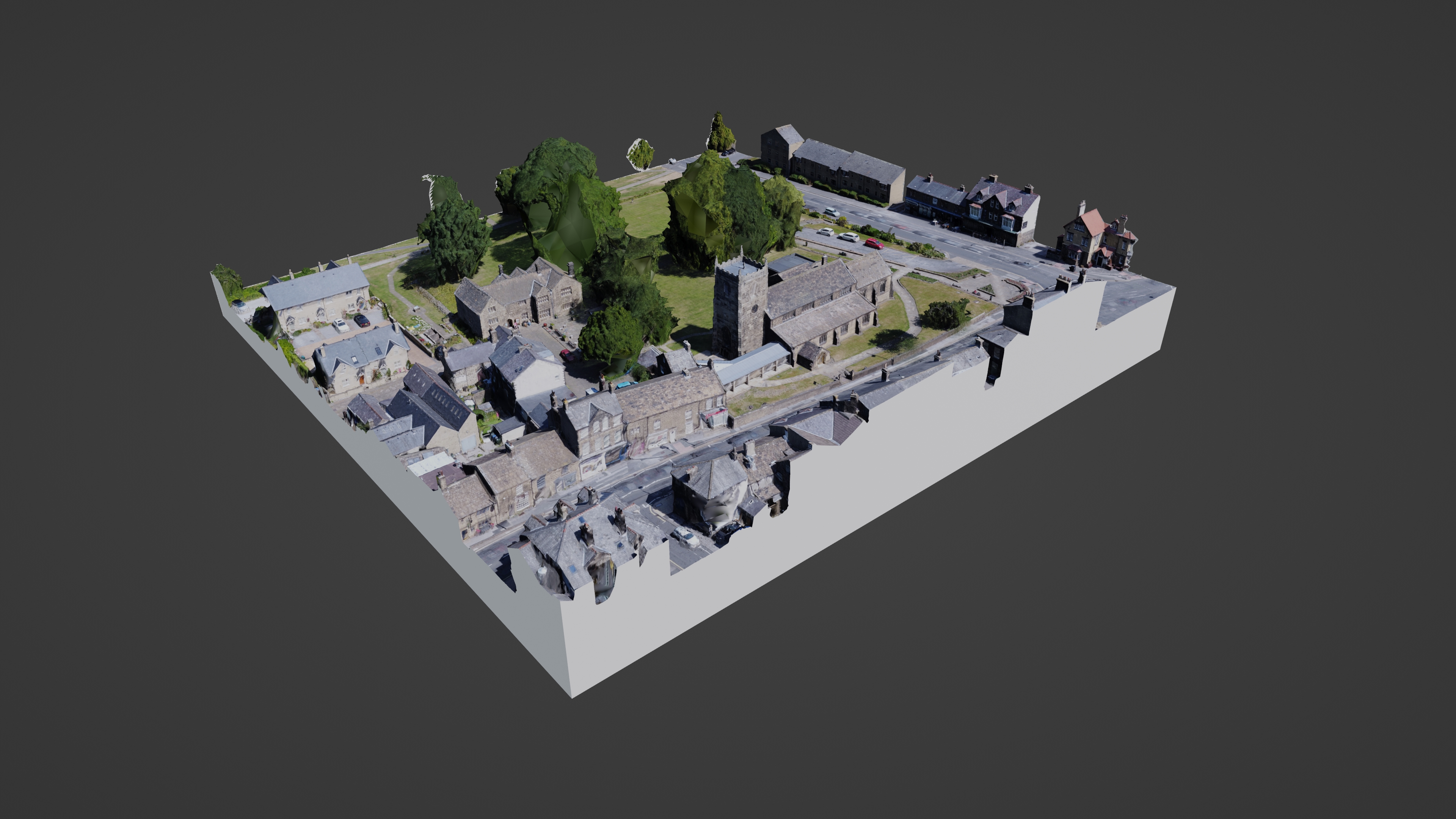

Figure 3: Photogrammetric models of (A) Ilkley Manor House, a historic Grade I listed building that is situated within the location of a Roman fort and is now a museum (https://sketchfab.com/3d-models/ilkley-manor-house-5a94ef4f1b084abe97821fb7e2699caa), and (B) Ilkley Manor House and its contextual setting (https://sketchfab.com/3d-models/ilkley-church-roman-fort-manor-house-0d9e02e9237a4db49e0fd1600b7a17c3).

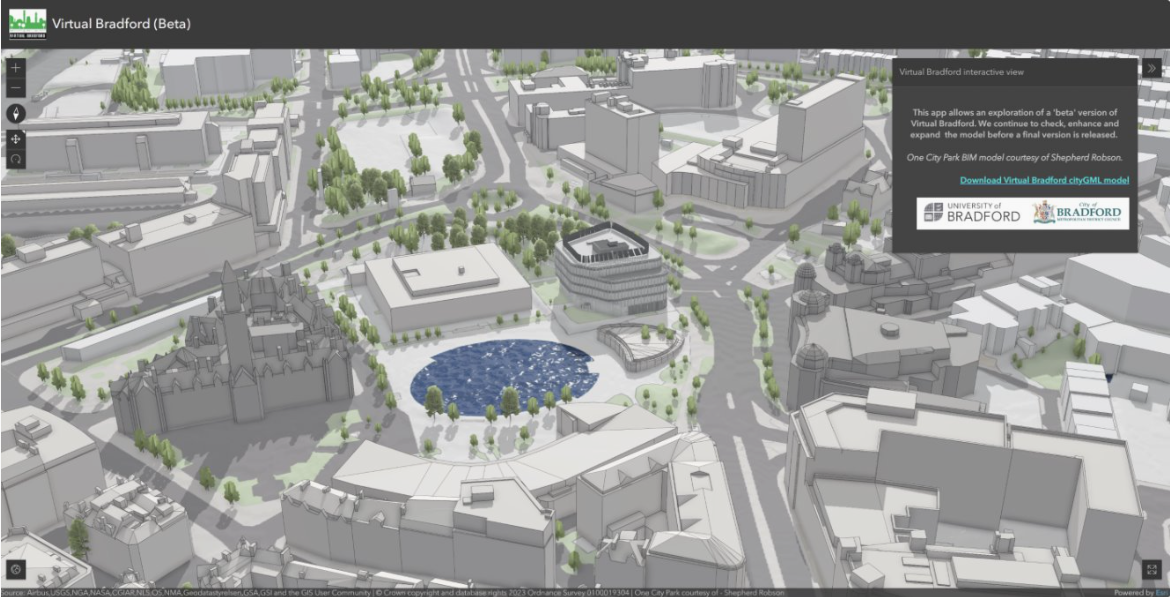

Figure 4: The landmark building One City Park, shown as an architectural concept prior to completion within the Virtual Bradford digital twin environment. The Virtual Bradford model is supplemented by level-of-detail 1 (LOD1) background information derived from Ordnance Survey mapping/data, Blue Sky tree data, and a One City Park building information modelling (BIM) model courtesy of Sheppard Robson. This building is adjacent to the Grade I listed City Hall, indicating the context of new builds within the historic core.
Figure 5: Immersive engagement using a reality portal within the loft space of the historic Salts Mill, as part of the Saltaire Arts Trail.

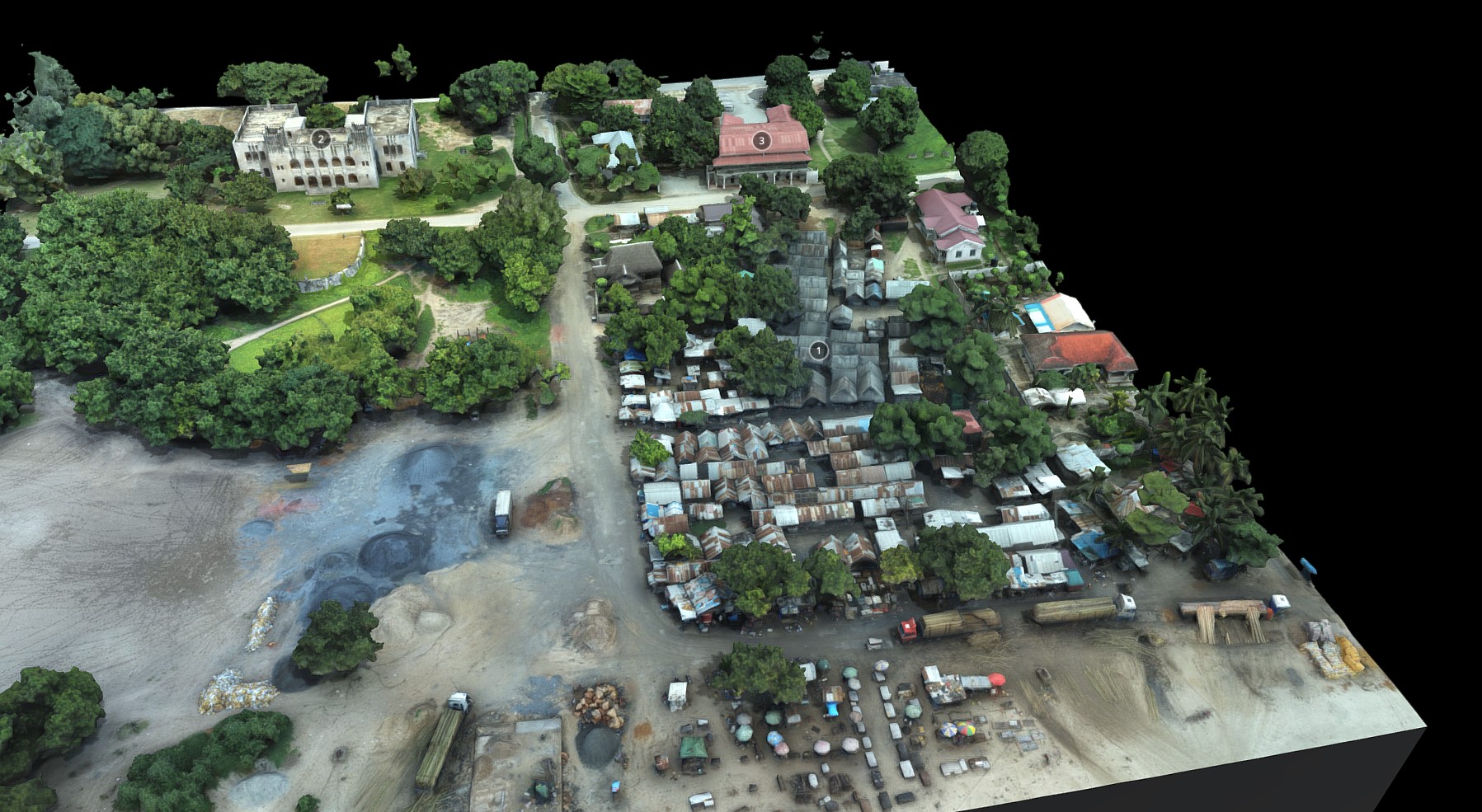

Figure 6: A snippet from the virtual twin of Bagamoyo, Tanzania, showing (1) the now demolished Fish Market, (2) the historic German Boma, and (3) the Old Arab Tea House.
Biljecki, F., Ledouz, H. and Stoter, J. 2016 'An improved LOD specification for 3D building models', Computers, Environment and Urban Systems 59, 25–37. https://doi.org/10.1016/j.compenvurbsys.2016.04.005
Coningham, R.A.E., Acharya, K.P., Barclay, C ., Barclay, R., Davis, C.E., Graham, C., Hughes, P.N., Joshi, A., Kelly, L., Khanal, S., Kilic, A. Kinnaird, T., Kunwar, R.B. Kumar, A., Maskey, P.N., Lafortune-bernard, A., Lewer, N., Mccaughie, D., Mirnig, N., Roberts, A., Sarhosis, V., Schmidt, A., Simpson, I.A., Sparrow, T., Toll, D.G., Tully, B., Weise, K., Wilkinson, S. and Wilson, A.S. 2019 'Reducing disaster risk to life and livelihoods by evaluating the seismic safety of Kathmandu's historic urban infrastructure: enabling an interdisciplinary pilot', Journal of the British Academy 7(S2), 45–82. https://doi.org/10.5871/jba/007s2.045
Cooper, J.P., Ichumbaki, E.B., Blue, L.K., Maligisu, P.C.M. and Mark, S.R. 2022 'When the 'asset' is livelihood: making heritage with the maritime practitioners of Bagamoyo, Tanzania', Heritage 5, 1160–98. https://doi.org/10.3390/heritage5020062
Croucher, K., Bates, C.R., Booker, O., Evans, A., Gaffney, C., Ichumbaki, E.B. Jennings, B., Moore, J., Ogden, J., Ritchings, J., Simpson, S., Sparrow, T., Snaylam, S., Sutton-Butler, A., Walker, A., Wilson, A.S. forthcoming 'Place, Identity and Wellbeing: Bradford and Beyond', Internet Archaeology, Wellbeing and Heritage themed issue.
Evans, A.A., Croucher, K., Greene, O. and Wilson, A.S. 2020 Virtual Heritage for Resilience Building (Version 1), Zenodo. https://doi.org/10.5281/zenodo.3950360
Gaffney, C., Gaffney, V., Neubauer, W., Ch'ng, E., Goodchild, H., Murgatroyd, P., Sears, G., Kirigin, B., Milosevic, A. and White, R. 2016a 'Cityscapes without figures: geophysics, computing and the future of urban studies' in F. Boschi (ed) Looking to the Future, Caring for the Past. Preventative Archaeology in Theory and Practice. Proceedings of the 2013–14 Erasmus IP Summer Schools in Preventive Archaeology: Evaluating Sites and Landscapes. Methods and Techniques for Evaluating Archaeological Value, Bologna: Bononia University Press. 191–214.
Gaffney, V., Cuttler, R., Bates, R., Gaffney, C., Ch'ng, E. and Wilson, A.S. 2016b 'BradPhys to BradViz or from archaeological science to heritage science' in 22nd International Conference on Virtual System and Multimedia (VSMM). 17–21 Oct 2016, Kuala Lumpur, Malaysia, IEEE. https://doi.org/10.1109/VSMM.2016.7863167
Hull, J. and Bryan, P. 2019 BIM for Heritage: Developing the Asset Information Model (2nd edn), Swindon: Historic England. https://historicengland.org.uk/advice/technical-advice/recording-heritage [Last accessed: 10 February 2025]
Ichumbaki, E.B., Cooper, J.P., Maligisu, P.C.M., Mark, S.R., Blue, L., and Biginagwa, T.J. 2021 'Building a Ngalawa double-outrigger logboat in Bagamoyo, Tanzania: a craftsman at his work', International Journal of Nautical Archaeology 50(2), 305–36. https://doi.org/10.1080/10572414.2021.2018243
Madgin, R. and Robson, E. 2023 Developing a People-Centred, Place-Led Approach: The Value of the Arts and Humanities, Glasgow: University of Glasgow. https://doi.org/10.36399/gla.pubs.342111
Moore, J., Gaffney, C., Sparrow, T., Irving, H., Ali, S., Middleton, R., Campbell, S., Ackroyd, J., Walker, A., Simpson, S., Ritchings, J. and Wilson, A.S. 2022 'A rapid approach to the digital documentation of Bradford's rich industrial heritage' in E. Ch'ng, H. Chapman, V. Gaffney and A.S. Wilson (eds) Visual Heritage: Digital Approaches in Heritage Science, Cham: Springer. 375–87. https://doi.org/10.1007/978-3-030-77028-0_18
Priestnall, G., Gardiner, J., Durrant, J. and Goulding J. 2012 Projection Augmented Relief Models (PARM): Tangible Displays for Geographic Information, Lexington, MA: ScienceOpen. https://doi.org/10.14236/ewic/EVA2012.28
Richardson, C. 1976 A Geography of Bradford, Bradford: University of Bradford.
Schmidt, P.R. and Ichumbaki, E.B. 2020 'Is there hope for heritage in former British colonies in eastern Africa? A view from Tanzania', Journal of African Cultural Heritage Studies 3(1), 26–51. http://doi.org/10.22599/jachs.29
Sparrow, T., Bain, K., Kimber, M. and Wilson, A.S. 2024 'Visualising heritage: using 3D immersive technologies to innovate, document and communicate rich narratives for HS2', Internet Archaeology 65. https://doi.org/10.11141/ia.65.7
Tenart, J., van der Zee, D. and van Herk, S. 2022 Open Source for Public Services. Approach, Evidence & Lessons from European Cities, Barcelona: Bax & Company.
Wilson, A.S. 2014 'Digitised diseases: preserving precious remains', British Archaeology 136, 36–41.
Wilson, A.S., Gaffney, V., Gaffney, C., Ch'ng, E., Bates, R., Sears, G., Sparrow, T., Murgatroyd, A., Faber, E. and Coningham, R.A.E. 2019 'Curious travellers: repurposing imagery to manage and interpret threatened monuments, sites and landscapes' in M. Dawson, E. James and M. Nevell (eds) Heritage Under Pressure, Threats and Solutions: Studies of Agency and Soft Power in the Historic Environment, Oxford: Oxbow. 107–122. https://www.jstor.org/stable/j.ctvpmw4hr.13
Wilson, A.S., Gaffney, V., Gaffney, C., Ch'ng, E., Bates, R., Ichumbaki, E.B., Sears, G., Sparrow, T., Murgatroyd, A., Faber, E., Evans, A. and Coningham, R. 2022 'Curious travellers: using web-scraped and crowd-sourced imagery in support of heritage under threat' in E. Ch'ng, H. Chapman, V. Gaffney and A.S. Wilson, (eds) Visual Heritage: Digital Approaches in Heritage Science. Cham: Springer. 51–65. https://link.springer.com/book/10.1007/978-3-030-77028-0
