4.4.1 16th-18th century painted schemes

Mark Perry and Richard Lithgow identified two later schemes of painting overlaying the medieval scheme in the Guildhall chapel. At some point during the later part of the 16th or early 17th century, both the south and east walls of the former guild chapel were repainted with a decorative scheme of alternating vertical stripes of red and yellow ochre (Lithgow and Perry 2014, 6, 11; fig. 28). There is no evidence of the paint continuing over the infill panels, which were probably whitewashed at this period (Lithgow and Perry 2014, 6; Lithgow and Perry 2016, 17). This raises interesting questions about exactly how the paintings were treated in the mid-16th century, when the impact of the Reformation was first felt in Stratford-upon-Avon (Gill 2012a; Bearman 2007; 2012). Were they initially coated with a fine limewash, or perhaps more controversially, initially covered over by striped textile hangings, and only painted over later in the century, as in the adjacent Guild Chapel?

Figure 28

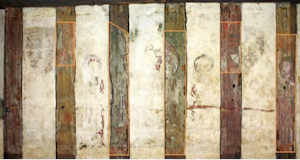

Figure 28: The south wall. The south wall, showing traces of a late 16th-early 17th century painted scheme of red and yellow ochre. Selected areas of this paint were removed, with the permission of Historic England to reveal the extent of the medieval painted scheme beneath © The Perry Lithgow Partnership

Analysis revealed that the east wall of the guild chapel had also been repainted at a later date, possibly in the 17th or even the 18th century (Lithgow and Perry 2016, 17). The ogee-headed doorway into the former Council Chamber was surmounted by a cartouche border and rectangular panel of text, with chevron designs extending down both sides of the posts forming the doorway itself (Figure 29a-b).The text panel border is embellished with a crudely painted red and yellow ochre lozenge pattern, while some of the chevrons are buff-coloured. The bresummer above the doorway is decorated with a buff-coloured scrollwork frieze on a white limewash ground edged in black (Lithgow and Perry 2016, 17) Although this is subtly different in style from the text panel border, it may well be part of the same scheme. The red and yellow ochre on the east wall is similar to the latest phase of painting on the south wall, which consists of an irregular wavy band of paint applied approximately 1m from the main image on the south wall, possibly associated with a shelf fixed against this wall

Figure 29a

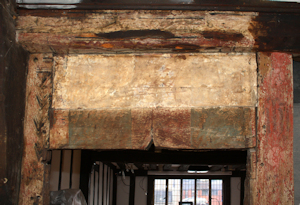

Figure 29a: The south wall. The east wall. Evidence for 17th-18th century painted scheme, reconstructed by Perry Lithgow. © The Perry Lithgow Partnership
Figure 29b

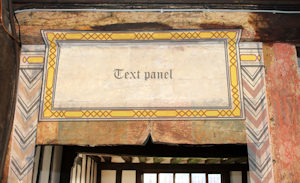

Figure 29b: The east wall. Evidence for 17th-18th century painted scheme, reconstructed by Perry Lithgow. © The Perry Lithgow Partnership
